load bearing insulation for high temperatures

pipe supports limited incorporate high temperature load bearing insulation in many designs of equipment. for instance where hightemperature piping is to be supported by pipe shoes incorporating slide bearings, such material will be utilised to reduce the temperature sufficiently at the bearing surface.

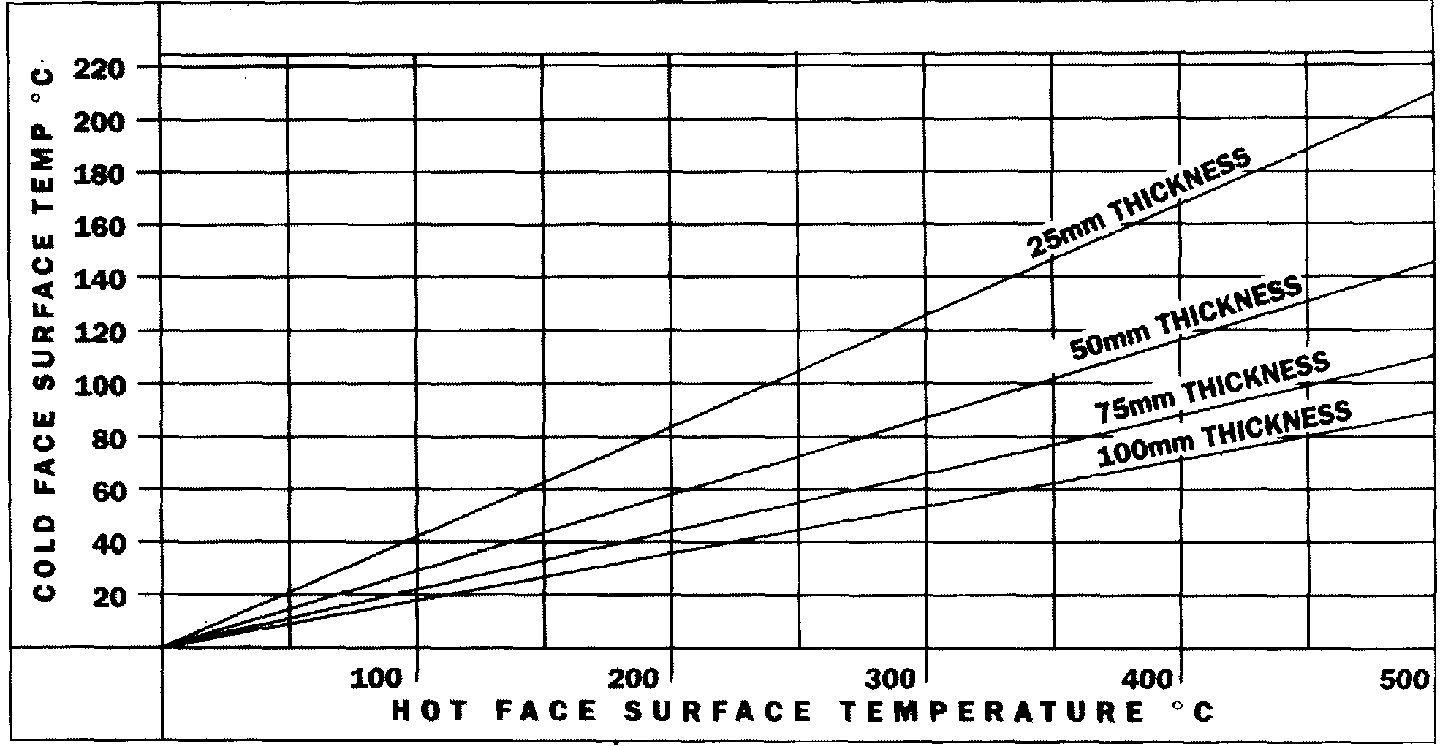

temperature reduction by thickness

general characteristics
nominal dry denslty	768	kg/m³
max recommended hot face temps	500	°c
normal moisture content	6-8	%
moisture movement: normal to dry	-0.1	%
normal to 90% rh	+0.01	%
normal to saturation	+0.02	%
alkalinity	7.9	ph
mechanical characteristics (dry board)
young's modulus (e value)	3.75	gpa
modulus of rupture at 25°c	7.0	mpa
impact strength (19mm board bs1811 part 2,1969)	150	mm
compaction under load:
1.0% compaction	2.2	mpa
1.5% compaction	4.3	mpa
2.0% compaction	7.8	mpa
brinell hardness 50kg load; 10mm ball; 10 sec	1.6
screwholding power (bs3536 part 2 1974):
13mm penetration-ultimate pull	50	kgf
19mm penetration-ultimate pull	100	kgf
thermal characteristics (dry board)
thermal conductivity (k)
at mean temperature 25°c	0.180	w/m°c
100°c	0.185	w/m°c
250°c	0.190	w/m°c
500°c	0.195	j/kg°c
thermal capacity at 100°c	1130	j/kg°c
200°c	1210	j/kg°c
300°c	1300	j/kg°c
400°c	1420	per°c
coefficient of thermal expansion to 125°c	5x10^-6	%
thermal shrinkage 4 hrs at 500°c
linear	0.29	%
thickness	0.68	%
