fig number, bolt diameter.

material:

bsen10 025 grade fe 430a or equivalent.

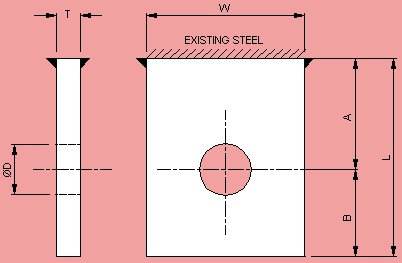

**f114 lug**
pin dia.	d dia.	a	b	w x l x t	safe working load
pin dia.	d dia.	a	b	w x l x t	kgf	kn
8	10	30	20	50x50x6	230	2.3
10	12	30	20	50x50x6	360	3.5
12	14	30	20	50x50x8	530	5.2
16	18	42	30	60x72x10	1010	9.9
20	22	50	35	60x85x10	1580	15.5
24	26	60	45	80x105x12	2280	22.4
30	33	70	55	100x125x15	3650	35.8
36	39	80	65	100x145x20	5340	52.4
42	45	90	75	110x165x25	7400	72.6
48	52	105	85	130x190x25	9650	94.6
56	60	120	100	150x220x30	13350	130.9
64	68	140	115	180x255x35	18000	176.5
72	76	155	130	200x285x40	23025	225.8
